Big Bale Company South Ltd supplies the full range of Massey Ferguson 2200 Series large square balers, designed for high-capacity baling of hay, straw, and silage.
Built on a legacy of performance and reliability, these balers combine advanced technology with rugged durability to deliver consistently dense, well-shaped bales.
Whether for commercial farming or contract baling, the 2200 Series provides efficiency, ease of operation, and industry-leading bale quality.
Our lineup includes the versatile MF 2233, the high-density MF 2234, the efficient MF 2224, the extra-density MF 2234 XD, and the large-capacity MF 2244, ensuring the right machine for every operation.
We also stock a wide range of quality used balers from previous generations, offering reliable performance at an excellent value.
Each model in the latest 2200 Series (2023 onward) features high plunger speeds, an extra row of pickup tines for increased intake, and a fully integrated hydraulic system for density control and knotter blowers.
Standard equipment includes electronic bale length control, air brakes, and redesigned axles to accommodate a variety of tyre sizes for optimal field performance.

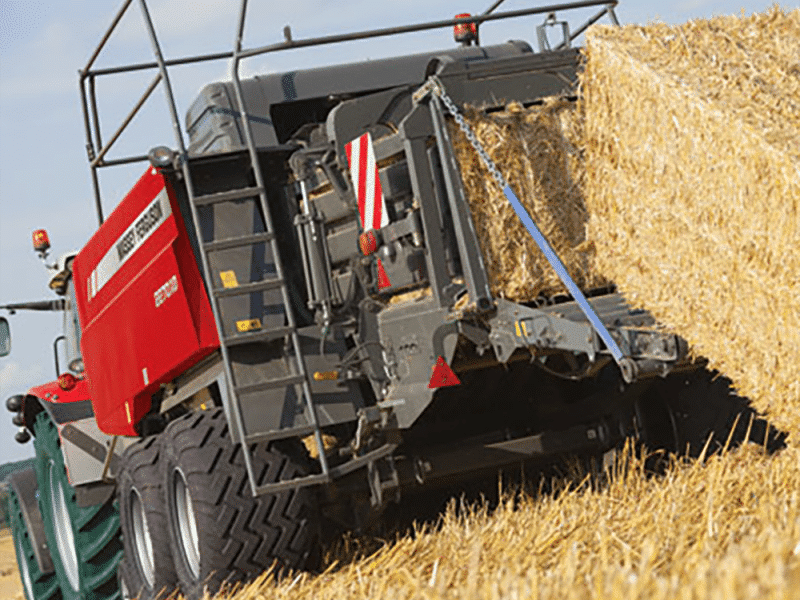

Additionally, all balers come equipped with a selectable bale ejector, roller chute, hydraulic knotter blower, and automatic lubrication for both knotters and drive chains—ensuring smooth operation and reduced maintenance.
With an extended bale chamber on select models for improved bale shape and density, the 2200 Series is engineered to meet the demands of modern high-output baling.
Compact Bales for Niche Markets
The MF 2240 produces 0.8m x 0.7m bales, the smallest format ideal for equestrian operations and small livestock farms.
Though discontinued, it remains highly sought-after on the used market for its manageable bale size and lower power requirements.
Versatile 3x3 for Mid-Range Operations
The MF 2250 and LB 2233 produce 0.8m x 0.9m (3x3) bales, offering the perfect balance between compact dimensions and commercial capacity.
Ideal for livestock farmers and contractors requiring manageable bales with excellent handling characteristics.
Low Profile for Transport Efficiency

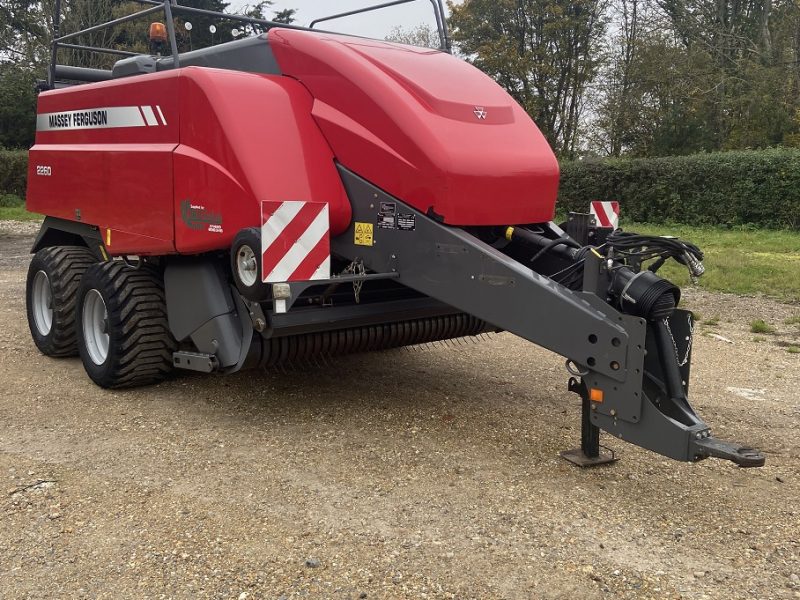

The MF 2260 and LB 2224 produce 0.7m x 1.2m (2x4) bales with a unique low-profile format.
Ideal for operations with height-restricted storage, low barns, and export markets where the wide, stable bale dimensions optimise transport efficiency.
Industry Standard 3x4 Format
The MF 2270 and LB 2234 produce 1.2m x 0.9m (3x4) bales, the most popular large square bale format globally.
The versatile choice for commercial farming, contracting, and diverse agricultural operations requiring proven reliability.
Extra Density for Maximum Efficiency

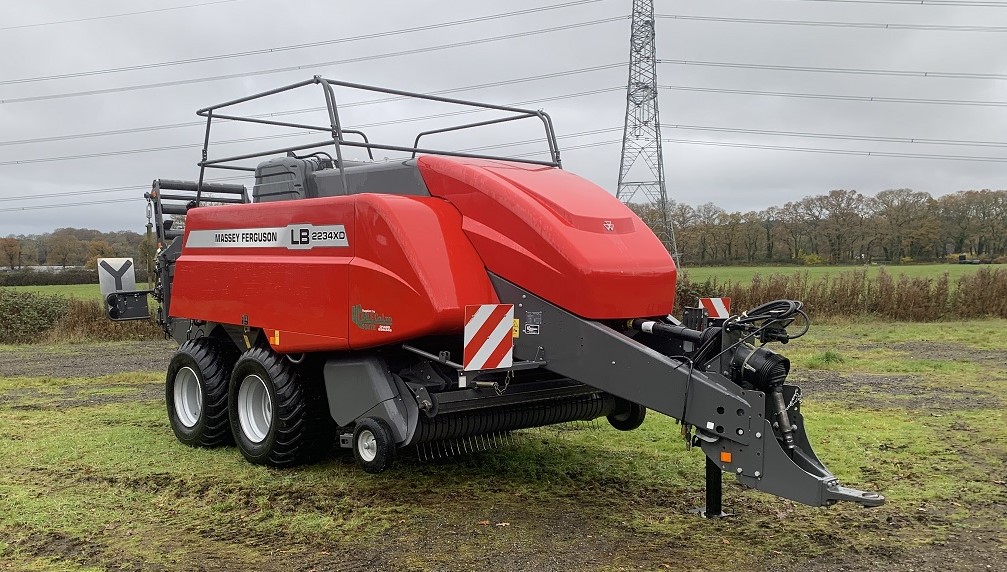

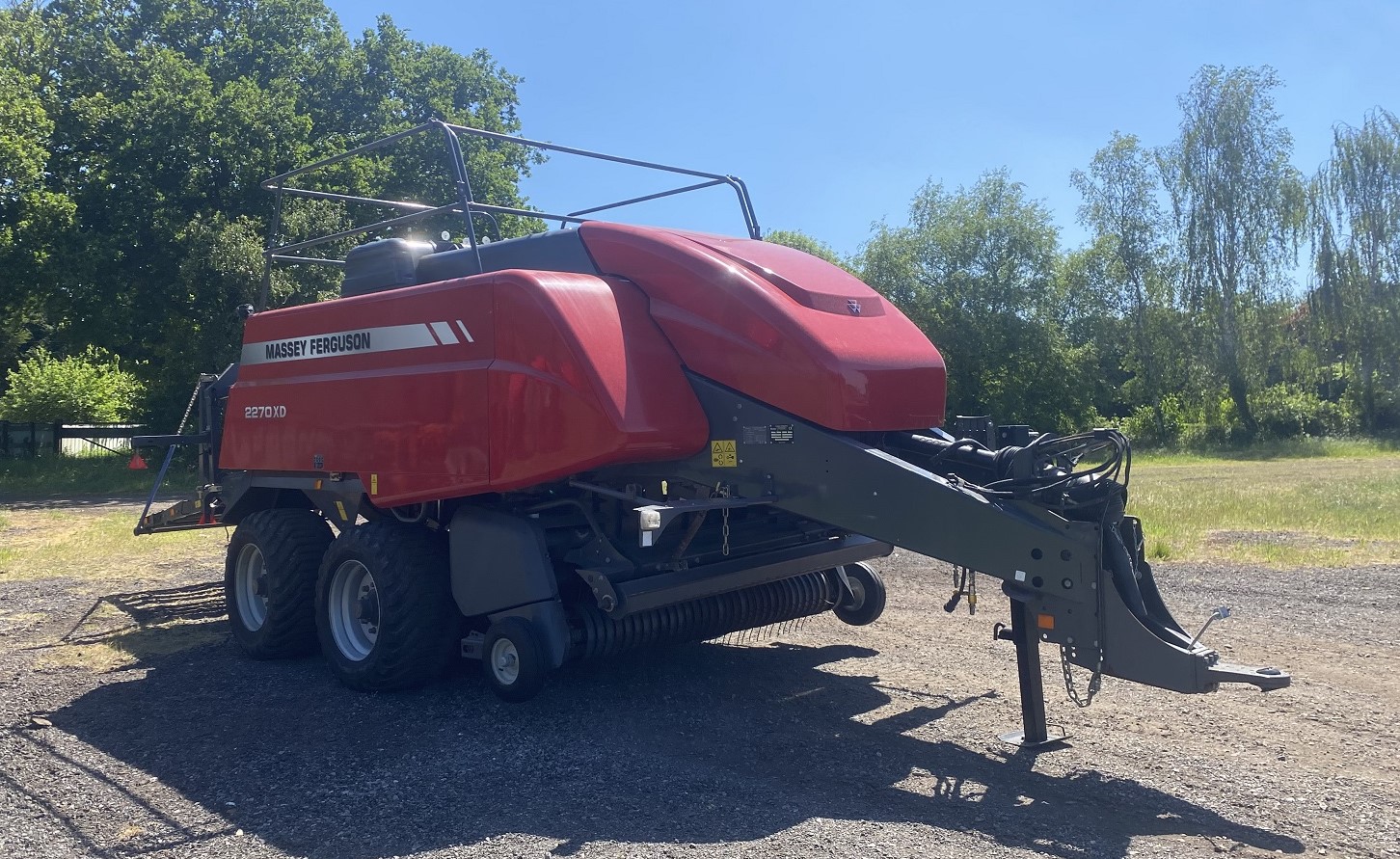

The MF 2270 XD and LB 2234 XD produce 0.9m x 1.2m (3x4) bales with 15-20% more density than standard models.
The most popular choice for contractors and large operations focused on reducing transport costs and maximizing payload.
Maximum Size for Industrial Applications

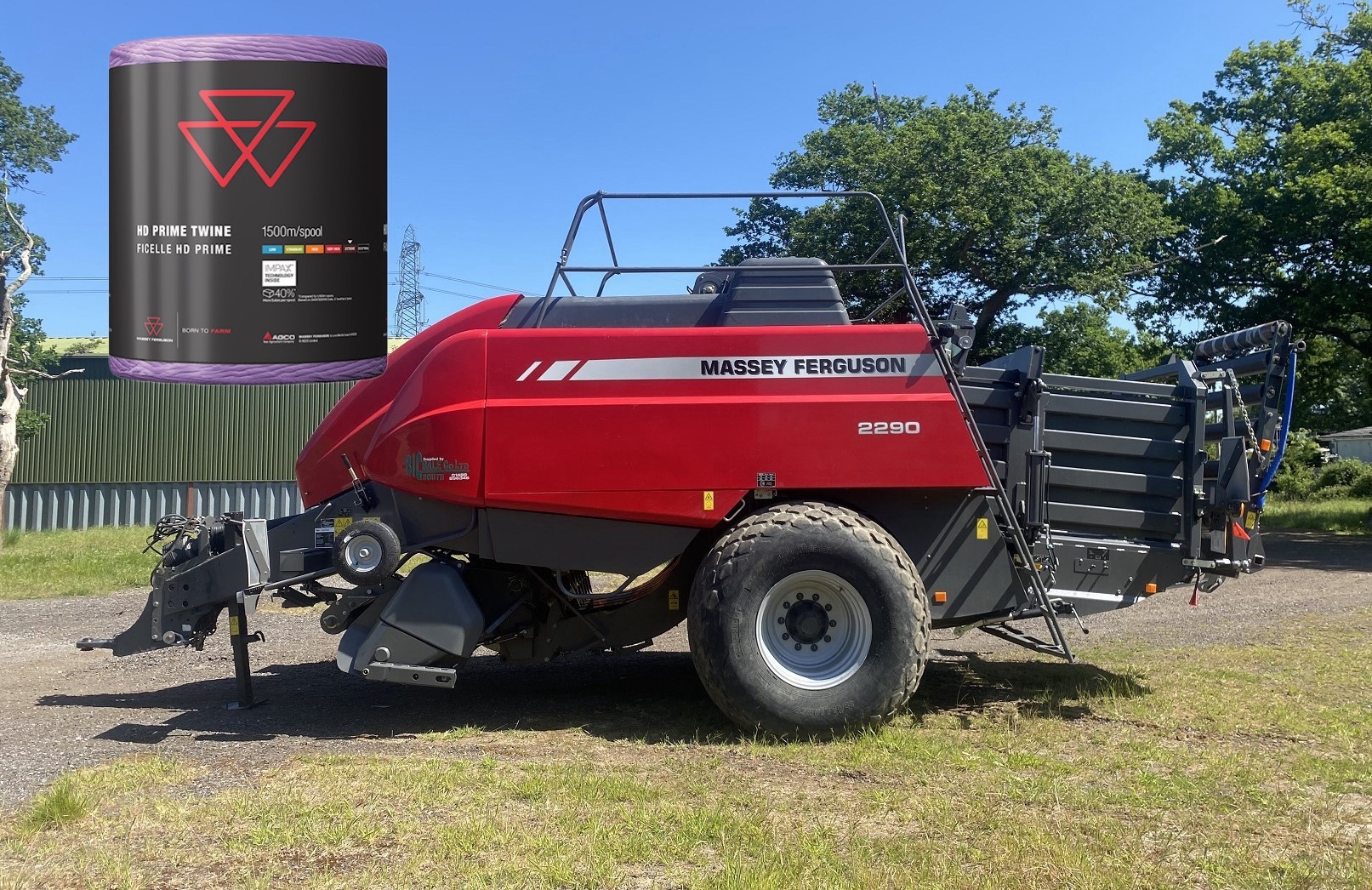

The MF 2290 and LB 2244 produce 1.2m x 1.3m (4x4) bales, the largest format in the lineup.
Designed for high-volume straw, hay, and biomass operations where fewer bales mean maximum efficiency and reduced handling costs.
Find out more about Massey Ferguson Balers. Talk to our sales team today to request a demo, brochure or discuss options.
| Model | (2240) | (2250) / 2233 | (2260) / 2224 | (2270) / 2234 | (2270XD) / 2234XD | (2290) / 2244 |
|---|---|---|---|---|---|---|
| Width x height(metres) | 0.80 w x 0.70 h | 0.80 w x 0.88 h | 1.20 w x 0.70 h | 1.20 w x 0.88 h | 120 w x 0.70 h | 1.20 w x 0.88 h |
| Bale length | Up to 2.74m | Up to 2.74m | Up to 2.74m | Up to 2.74m | Up to 2.74m | Up to 2.74m |
| Model | (2240) | (2250) 2233 | (2260) 2224 | (2270) 2234 | (2270XD) / 2234XD | (2290) / 2244 |
|---|---|---|---|---|---|---|
| Height to top of handrail (Raised) | 3.24m | 3.24m | 3.27m | 3.27m | 3.27m | 3.58m |
| Overall width. Single/Tandem | 2.55/2.60 | (2.99/3.02) / 2.99m | (2.99/3.02) / 2.99m | (2.99/3.02) / 2.99m | (2.99/3.02) / 2.99m | (3.27/3.02) / 2.99m |
| Effective pick up width | 2.26m | 2.26m | 2.26m | 2.26m | 2.26m | 2.26m |
| Length with bale chute up | 8.00m | 8.00m | 8.00m | 8.00m | 8.40m | 8.49m |
| Length with bale chute down | 9.50m | 9.50m | 9.84m | 9.84m | 10.24m | 10.33m |
| Weight single/tandem/cutter | 7,900/7,925kg | 7,900/8,400/9,230kg | 8,850/9,400/10,340kg | 9,350/9,900/10.840kg | N/A/10,700/11,640kg | 10,650/11,200/N/Akg |
| Plunger Speed (strokes/min) | 47 | 47 | 47 | 47 | 47 | 33 |
| Length of stroke (cm) | 74 | 74 | 74 | 74 | 74 | 83 |
| Model | (2240) | (2250) 2233 | (2260) 2224 | (2270) 2234 | (2270) / 2234XD | (2290) / 2244 |
|---|---|---|---|---|---|---|
| Knotter system | 4 double knotters | 4 double knotters | 6 double knotters | 6 double knotters | 6 double knotters | 6 double knotters |
| Knotter lubrication (automatic) | Standard | Standard | Standard | Standard | Standard | Standard |
| Hydraulic knotter blower | Standard | Standard | Standard | Standard | Standard | Standard |
| Main chain lubrication (automatic) | Standard | Standard | Standard | Standard | Standard | Standard |
| Removable pickup wheels | Standard | Standard | Standard | Standard | Standard | Standard |
| Windguard with roller crop press | Standard | Standard | Standard | Standard | Standard | Standard |
| Bale ejector (selectable) | Standard | Standard | Standard | Standard | Standard | Standard |
| Electric Bale Length | Optional Extra | (Optional) / Standard | (Optional) / Standard | (Optional) / Standard | (Optional) / Standard | (Optional) / Standard |
| Air Brakes | Optional | (Optional) / Standard | (Optional) / Standard | (Optional) / Standard | (Optional) / Standard | (Optional) / Standard |
| Integrated Weigh Kit | Optional | Optional | Optional | Optional | Optional | Optional |
| Bale chute | Roller | Roller | Roller | Roller | Roller | Roller |
| Twine capacity | 30 spools | 30 spools | 30 spools | 30 spools | 30 spools | 30 spools |
| Model | (2240) | (2250) 2233 | (2260) 2224 | (2270) 2234 | (2270) / 2234XD | (2290) / 2244 |
|---|---|---|---|---|---|---|
| Tyres, Single | 600/50-22.5 | (600/50-22.5) / 700/50-22.5 | 700/50-22.5 | 700/50-22.5 | N/A | (28L x 26) / 700/50-22.5 |
| Tyres, tandem | 500/50-17 | (500/50-17) / 600/50-22.5 | (500/45-22.5) / 600/50-22.5 | (500/45-22.5) / 600/50-22.5 | (500/45-22.5) / 600/50-22.5 | (500/45-22.5) / 600/50-22.5 |
| Tyre option, tandem | (620/40R-22.5) | (620/40R-22.5) | (620/40R-22.5) / 620/50-22.5 | (620/40R-22.5) / 620/50-22.5 | (620/40R-22.5) / 620/50-22.5 | (620/40R-22.5) / 620/50-22.5 |
| PTO speed (RPM) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Recommended PTO horsepower (kw/hp) | 140/105 | 150/112 | 160/120 | 170/127 | 200/150 | 200/150 |

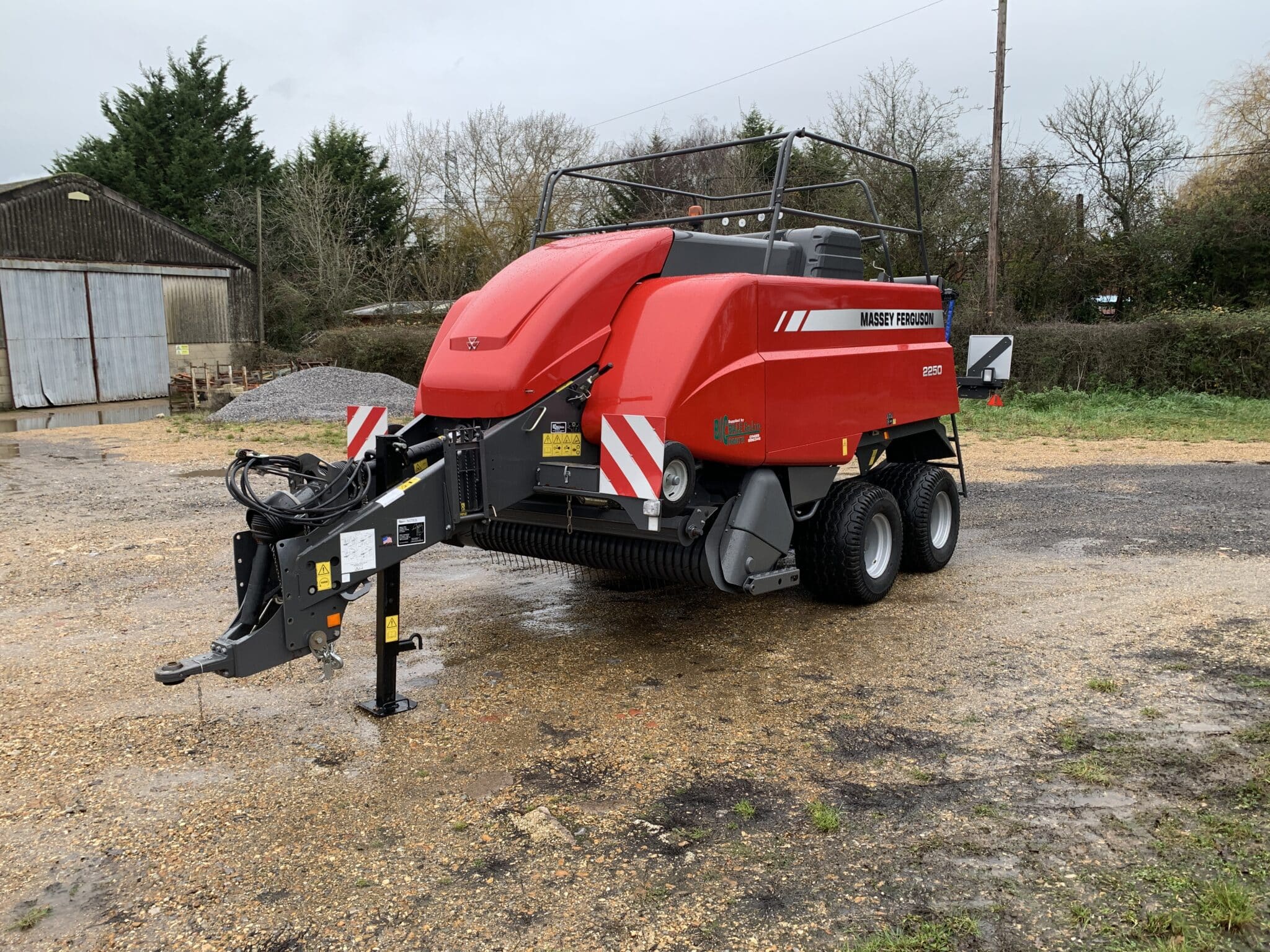

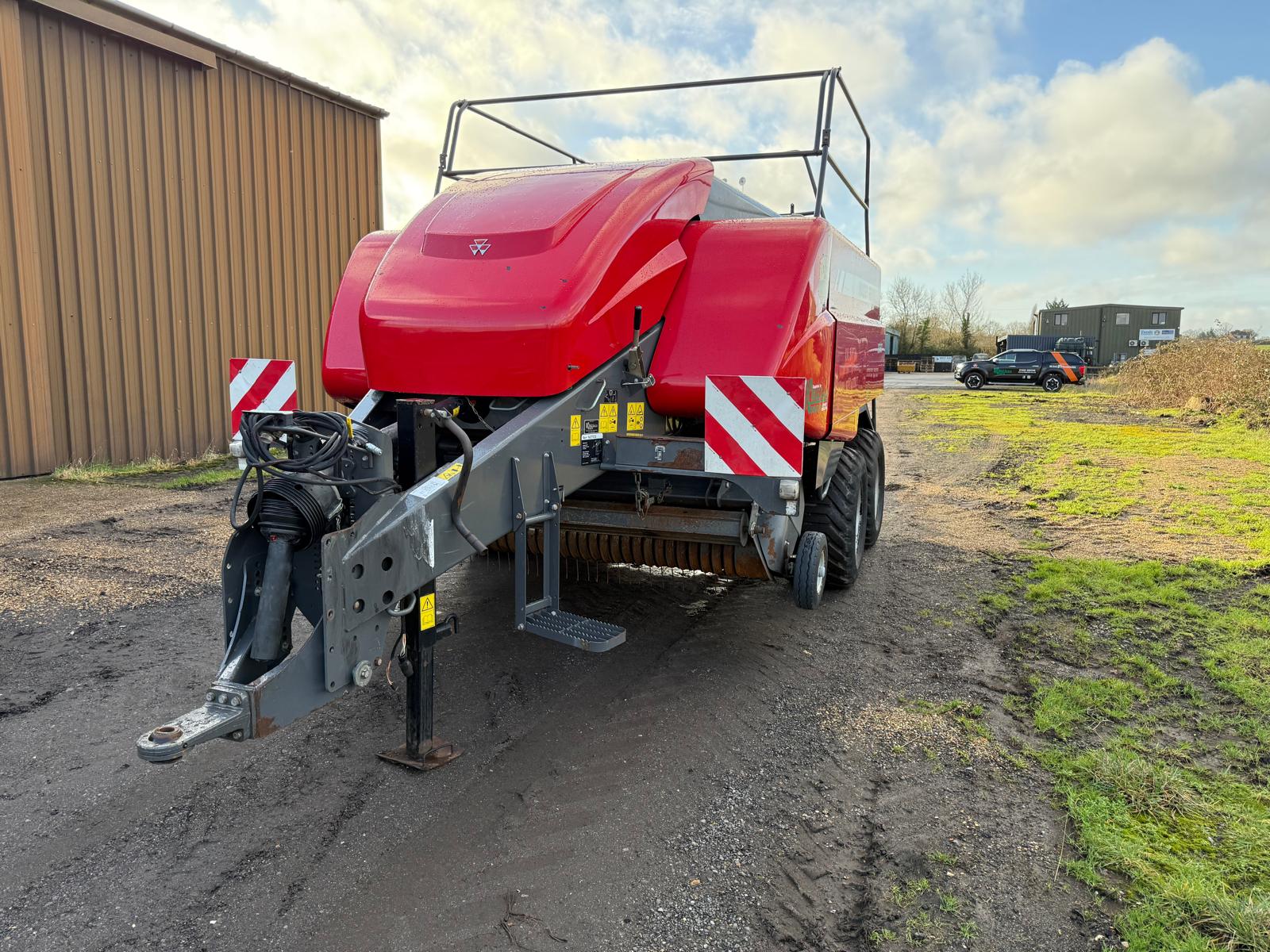

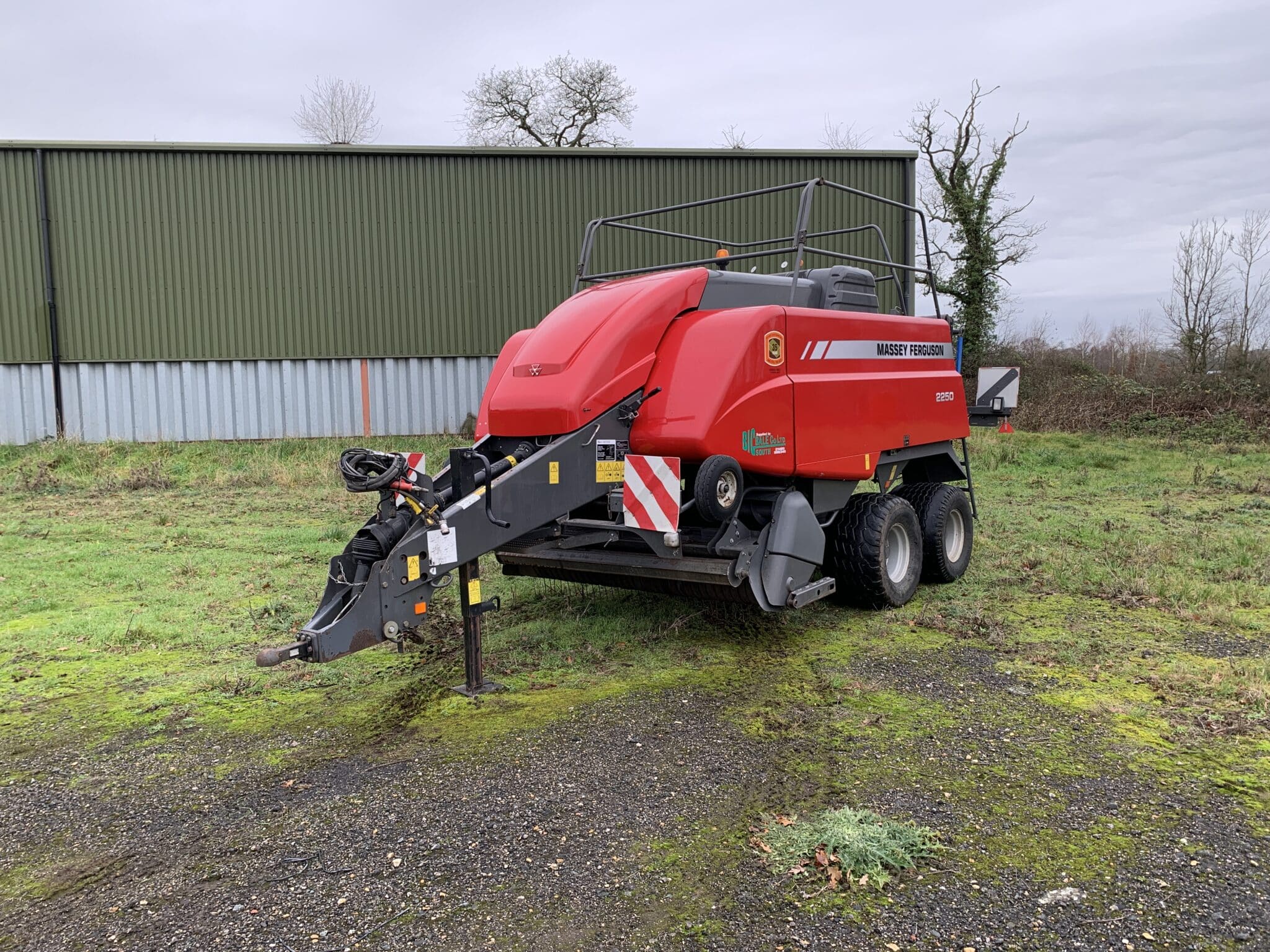

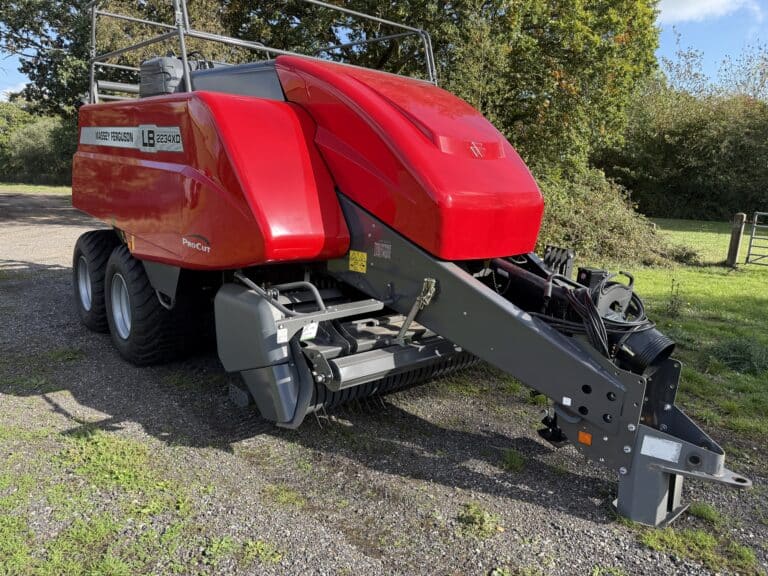

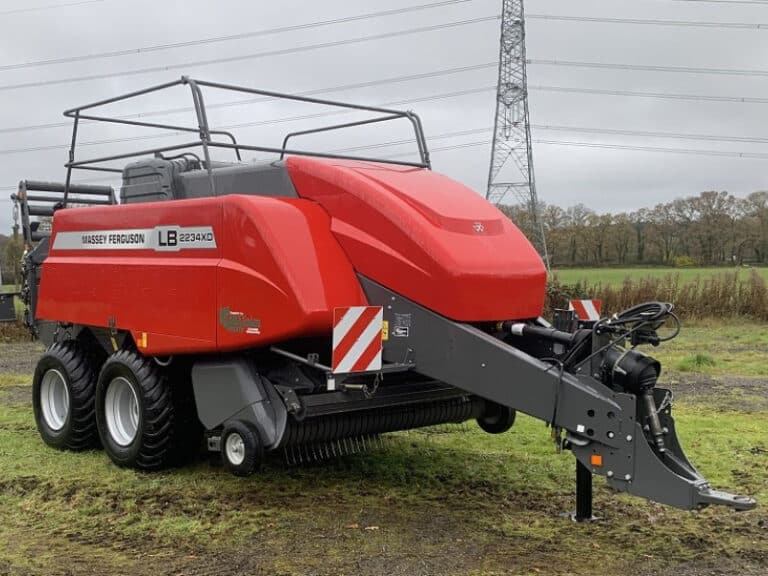

New & Used Balers in Stock
Available now & ready to work
Tailor Your Baler with Premium Extras

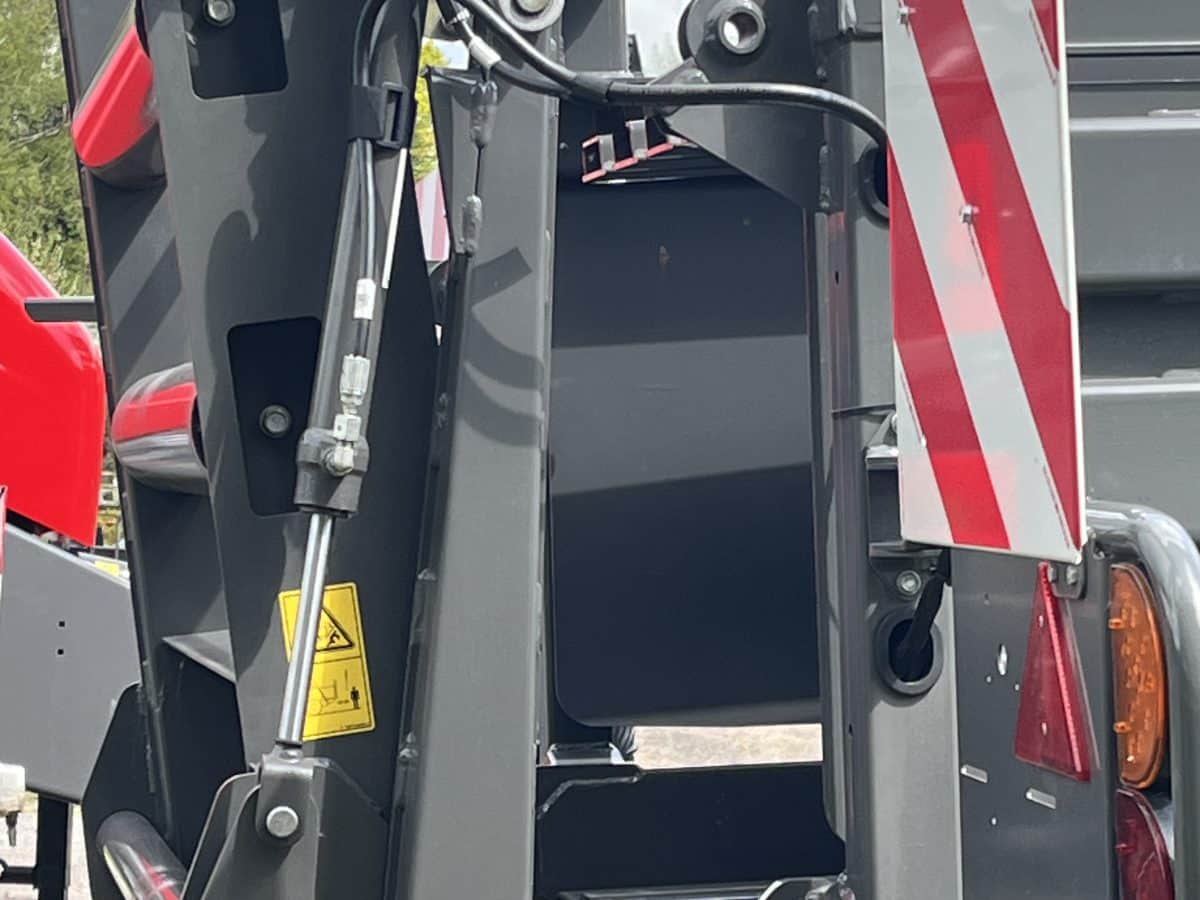

Optimise your baling operation with the Integrated Weigh Kit, a powerful management tool designed to help you achieve and maintain target bale weights.
By monitoring bale weight in real time, operators can adjust key variables such as plunger load and forward speed, ensuring consistency and efficiency in every bale.

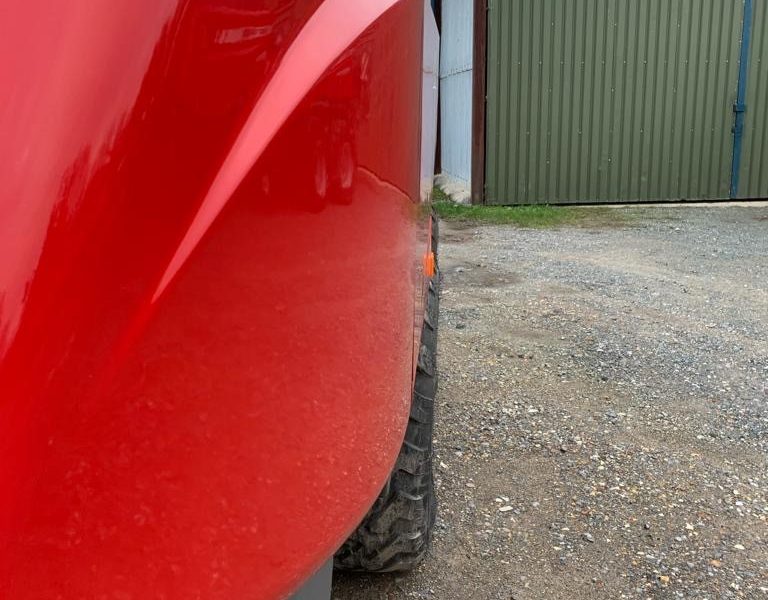

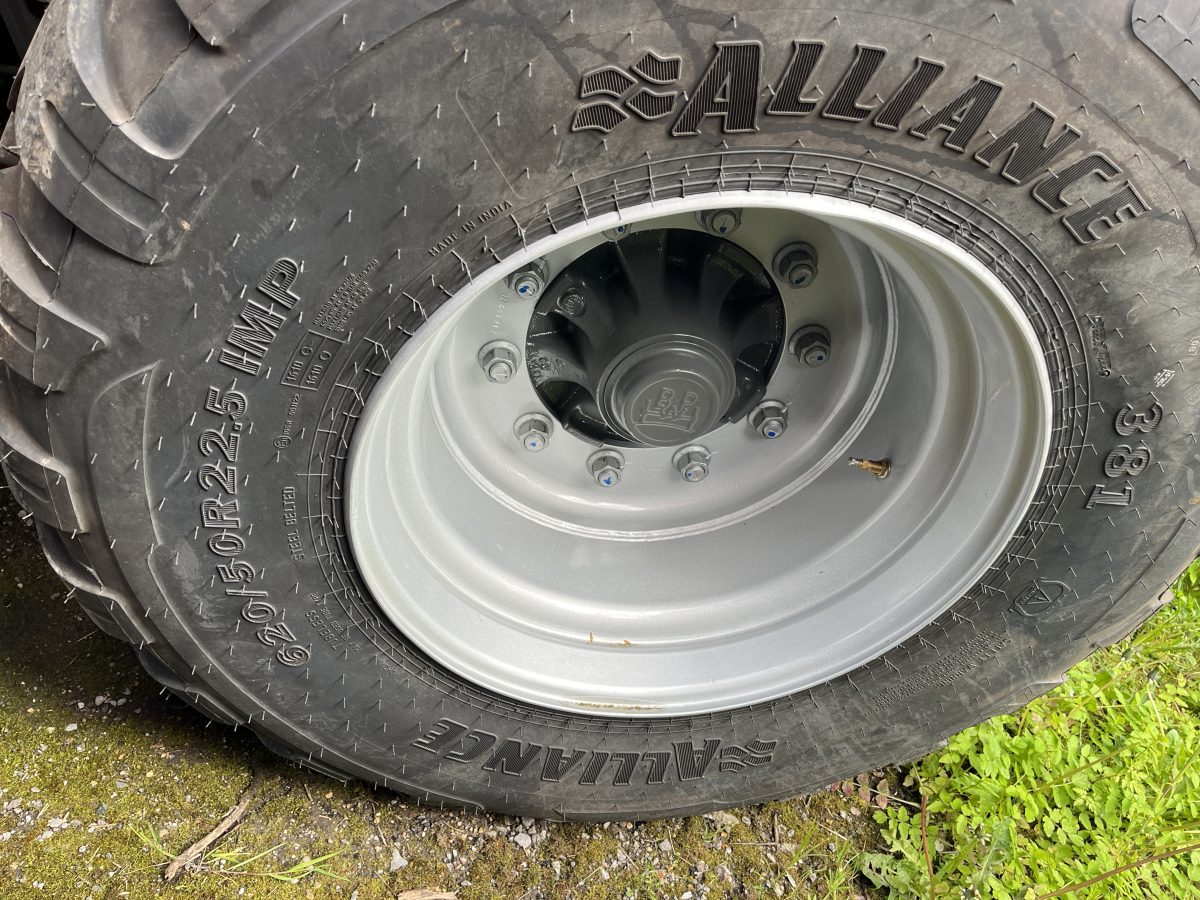

Enhance performance and durability with radial tyre upgrades for MF 2200 series balers. For 2023 models onward, the standard 600/50-22.5 cross-ply tyres can be replaced with 620/50 R-22.5 radial tyres, maintaining the original baler width.
For models up to and including 2022, the standard 500/45-22.5 cross-ply tyres can be upgraded to 620/40 R-22.5 radials, increasing the overall width by approximately 200mm.
Make hitching and unhitching your baler effortless with the 80mm Ball Hitch Coupling. Designed for secure and efficient attachment, this upgrade improves stability and ease of use.
A spacer may be required to maintain the correct PTO length distance measurement.

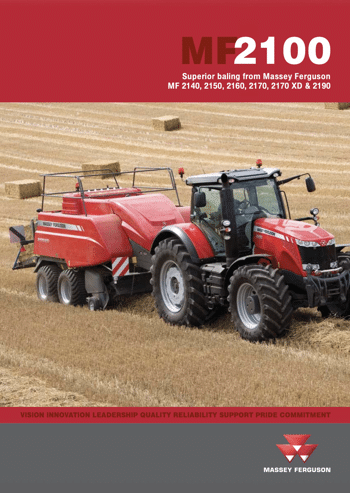

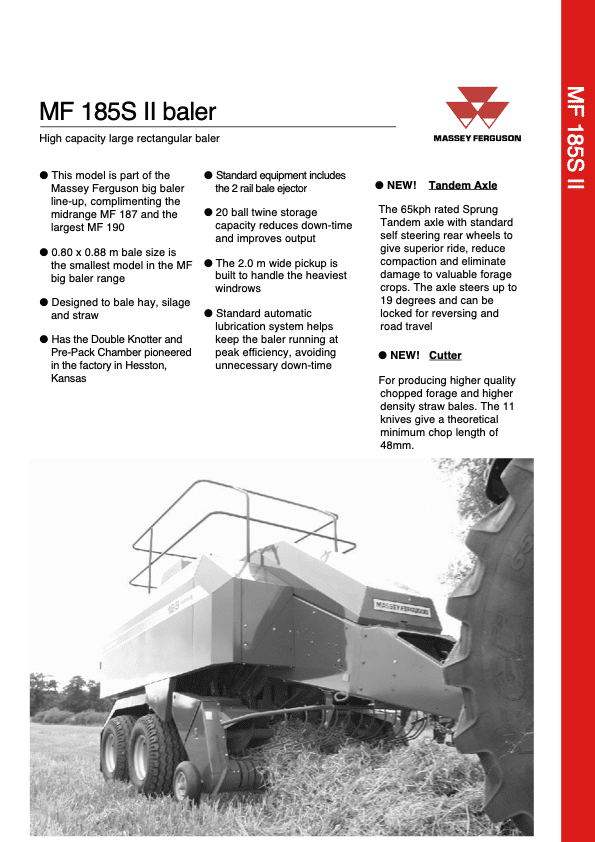

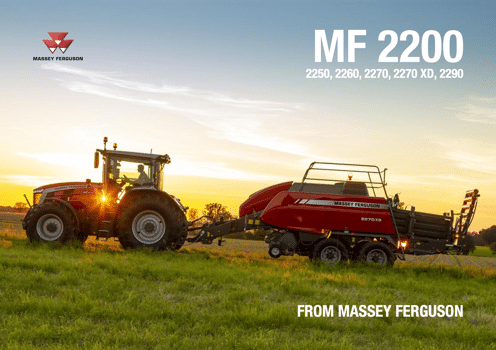

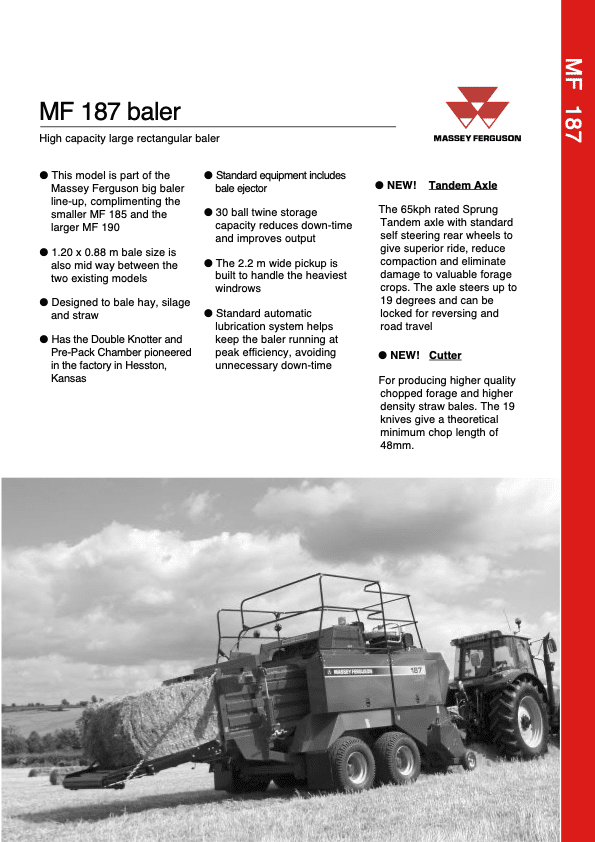

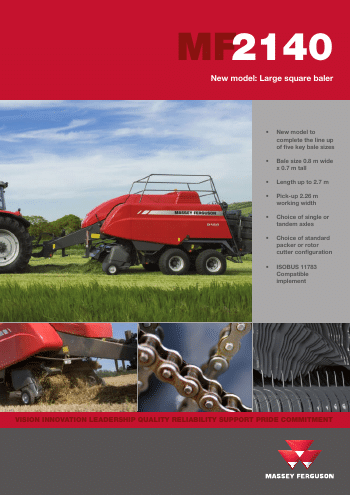

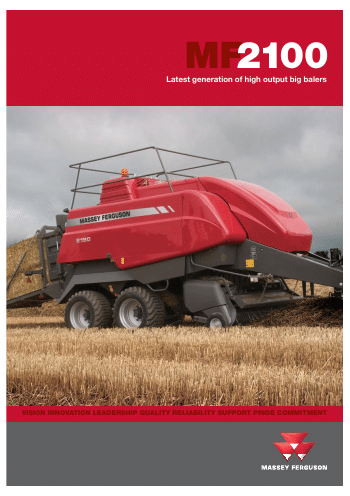

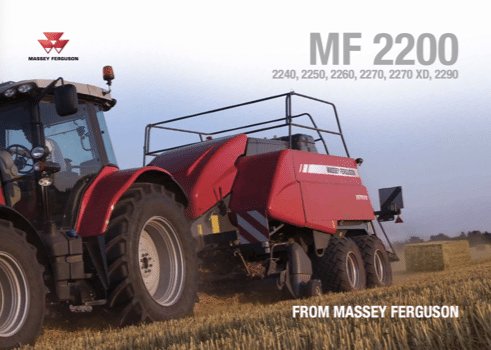

Legacy and current Massey Ferguson Baler Brochures
