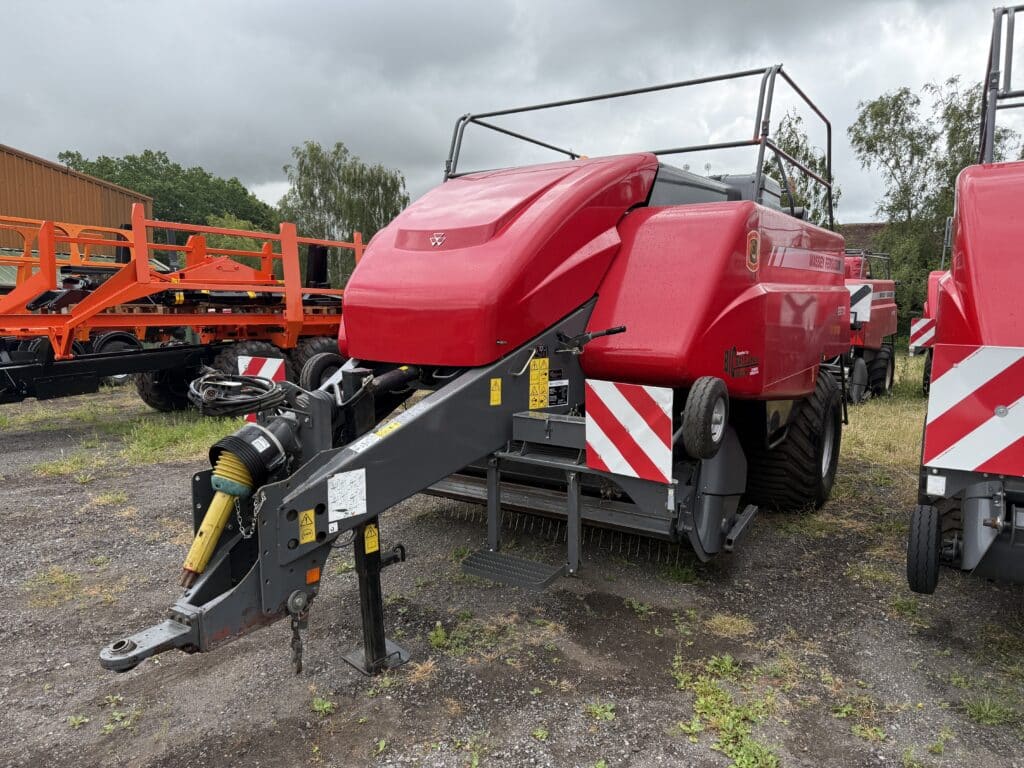

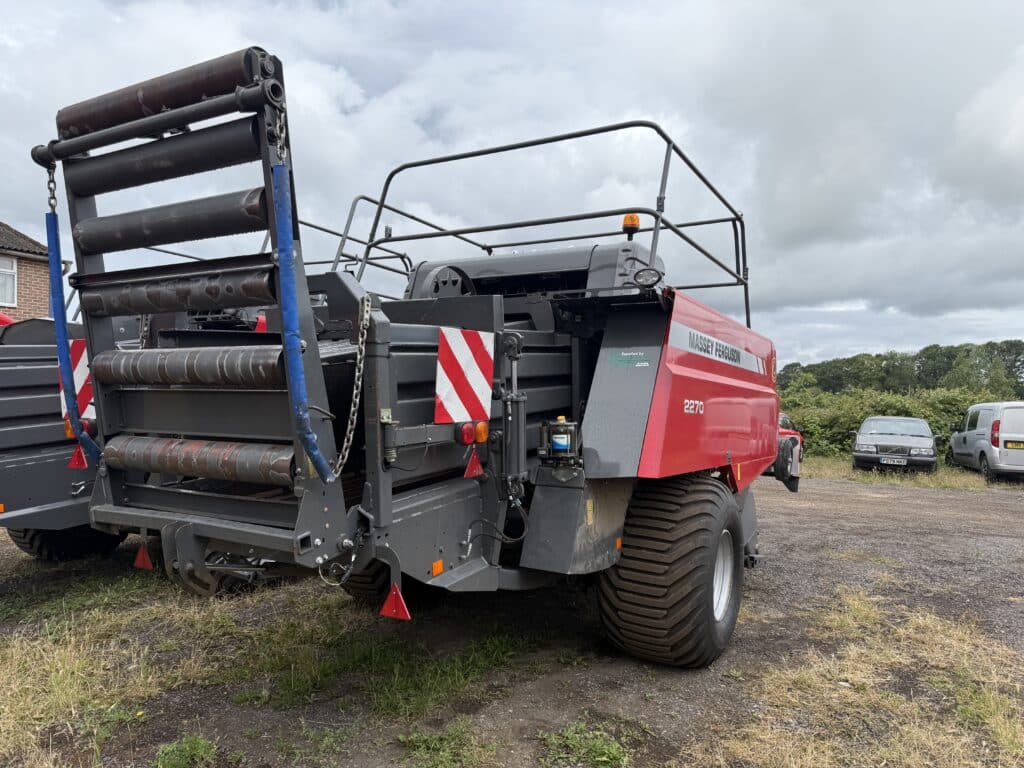

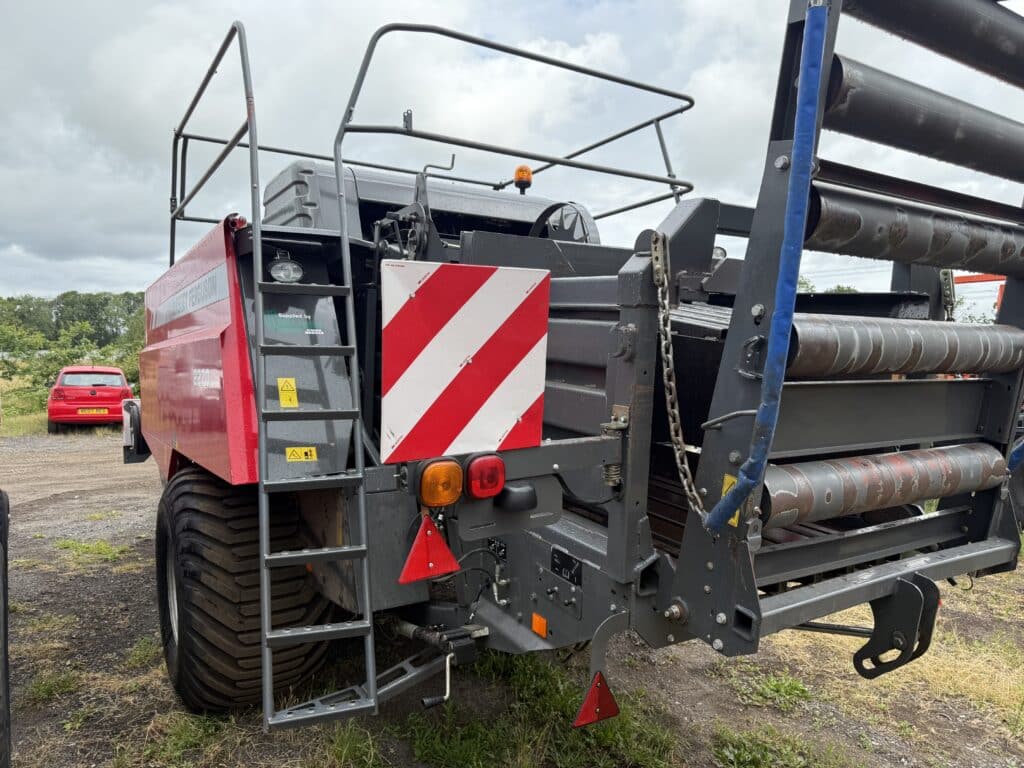

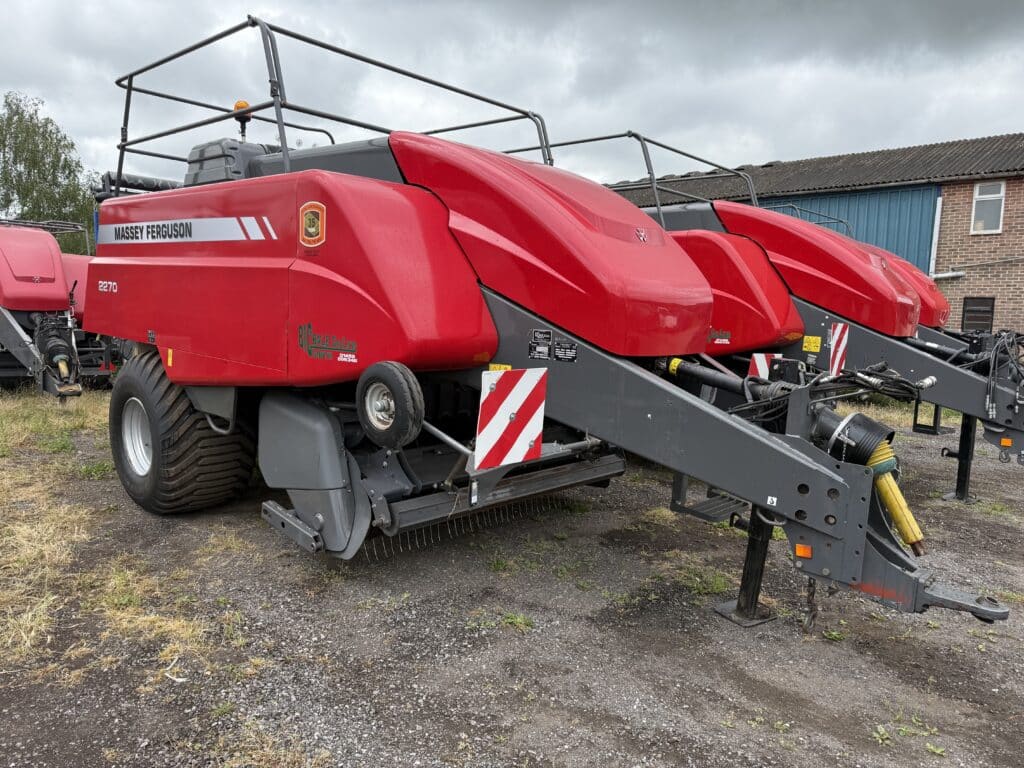

The Massey Ferguson 2270 is a versatile 3×4 large square baler designed for professional contractors and commercial farming operations.
Serving as the successor to the proven MF 2170 model, the MF 2270 requires 170 HP (127 kW) minimum PTO power and represents the most popular bale size format in the MF 2200 series. Available in both packer and ProCut configurations with 26 knives, plus optional single or tandem axle, this versatile baler delivers exceptional performance across hay, haylage, straw, silage, and miscanthus applications.
The MF 2270 has now been superseded by the MF LB2234 in the latest Massey Ferguson lineup, but remains the benchmark for reliability and productivity in the 3x4 bale segment worldwide.
| Feature | Specification |
|---|---|
| Bale Size (W x H) | 1,200 x 900 mm |
| Bale Length | Up to 2,740 mm |
| Flywheel Size | 870 mm diameter, 130 mm width, 290 kg |
| Drive Protection | Slip clutch, overrunning clutch, and shear bolt |
| Tractor Power Req. | Packer: 170 hp (127 kW) | Cutter: 250 hp (186 kW) |
| Pick-up System | 4 tine bars | Quad Augers | 2,260 mm working width |
| Packer System | Fork type, 6 hardened tines |
| Cutter Option | ProCut (26 knives) | Configuration: 0, 13, 26 knives |
| Plunger | 47 strokes/min | 740 mm stroke length |
| Tying Mechanism | 6 double-knot knotters |
| Twine Capacity | 30 spools with "Easy-Fill" storage |
| Bale Ejector | 8 teeth in 4 rows | 3 selectable rows |
| Bale Chute | Heavy duty roller chute | Hydraulic folding |
| Axle Options(Max Speed) | Single Axle (40 km/h) | Tandem Axle (60 km/h where permitted) |
| Tyre Options | Single: 700/50-22.5 | Tandem: 500/45-22.5 (Std), 620/40-22.5 (Opt) |
| Control & Monitoring | ISOBUS 11783 | C1000 Baler Monitor |
| Width | 3,000 mm (pick-up wheels installed) |
| Height | 2,970 mm (Handrails folded) | 3,270 mm (Handrails raised) |
| Length (Chute Folded) | 8,300 mm |
| Weight (Approx.) | Single (Packer): 8,720 kg | Tandem (Packer): 9,740 kg | Tandem (Cutter): 10,630 kg |
| Optional Accessories | Integrated Bale Weighing, Hydraulic Parking Jack, Camera, Telemetry |
* Specifications subject to change. Please confirm all details with your Massey Ferguson dealer prior to purchase.
See how the MF 2270 compares to other Massey Ferguson balers
The MF 2270's industry-standard 3x4 bale format makes it the most versatile choice for commercial farming and contracting operations.
Contractors typically pair the 2270 with 180–220 hp tractors for optimal performance and fuel efficiency.
Popular in mixed farming regions where versatility is essential, the 2270 handles everything from premium horse hay to bulk straw baling.
Its 3×4 bale format offers excellent stack-ability and transport efficiency while remaining manageable for most farm handling equipment.
Designed for straightforward maintenance, the MF 2270 features accessible service points throughout and the AutoLube system providing automatic lubrication to 24 knotter points as standard.
The 2270 produces 1,200 × 900 mm (47" × 35") bales, commonly known as 3×4 bales, with adjustable lengths up to 2.74 metres. This size offers excellent stackability and transport efficiency.
Minimum 170 hp for packer-only, 200 hp when running with the ProCut cutter system. Most operators pair it with 180-220 hp tractors for optimal performance.
The standard MF 2270 produces conventional density 3x4 bales suitable for most applications, while the MF 2270 XD (Extra Density) model packs 15-20% more material per bale using a heavier flywheel, stronger gearbox, and OptiForm bale chamber.
The XD model is specifically designed for operations prioritizing transport efficiency and maximum density, though it requires more power and comes as standard with a tandem axle.
Yes, the 2270 equipped with the optional ProCut cutter system handles haylage and wrapped silage effectively. The cutter offers 0, 13, or 26 knife configurations for different chop lengths.
The packer version uses six hardened packer tines to feed material directly into the pre-compression chamber, ideal for dry hay and straw. The ProCut version features a heavy-duty 650mm diameter rotor with 26 knives arranged in two banks, providing chop lengths of 43.5mm (all knives) or 87mm (single bank), perfect for silage, haylage, and applications requiring finely chopped material for enhanced fermentation.
