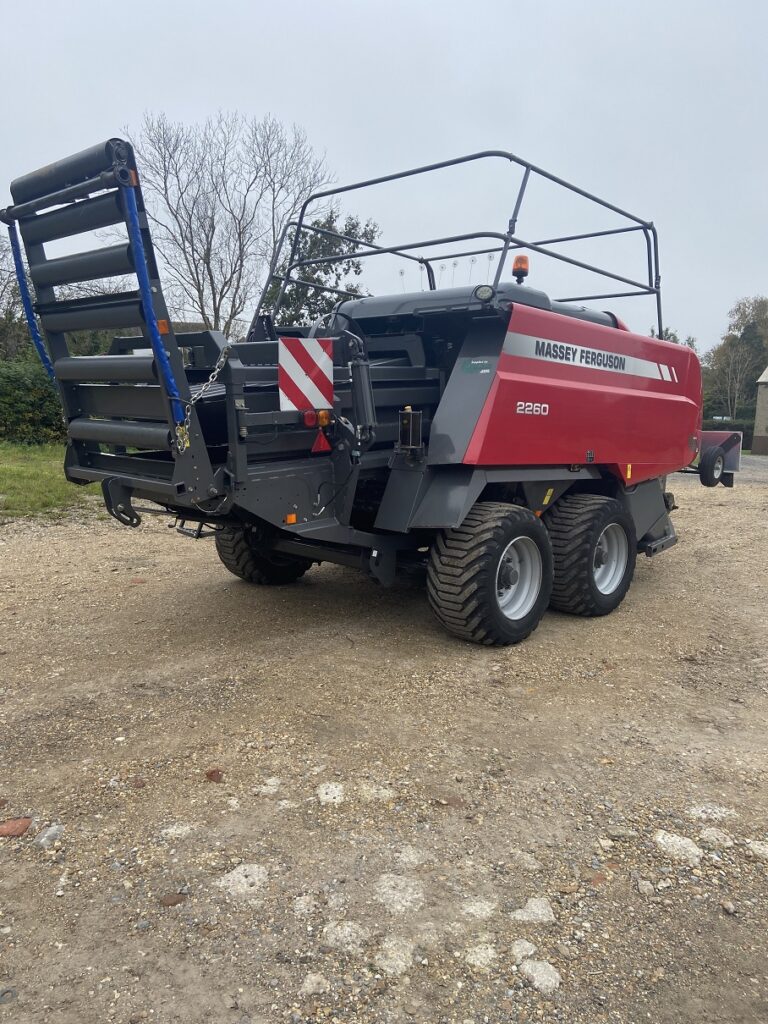

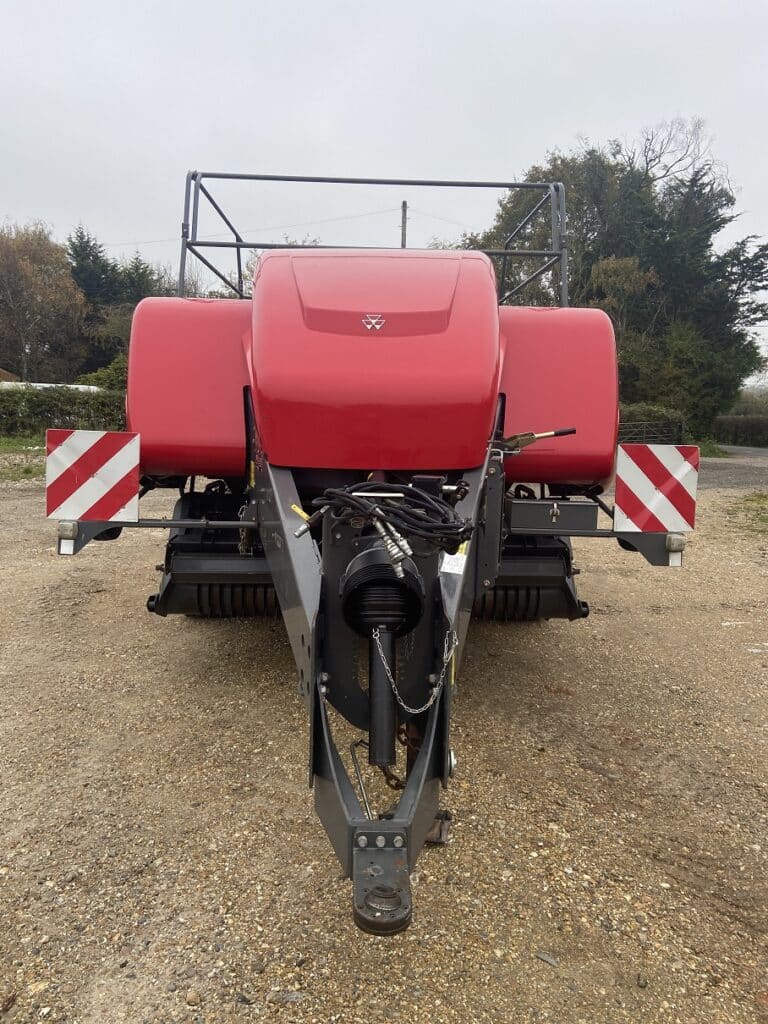

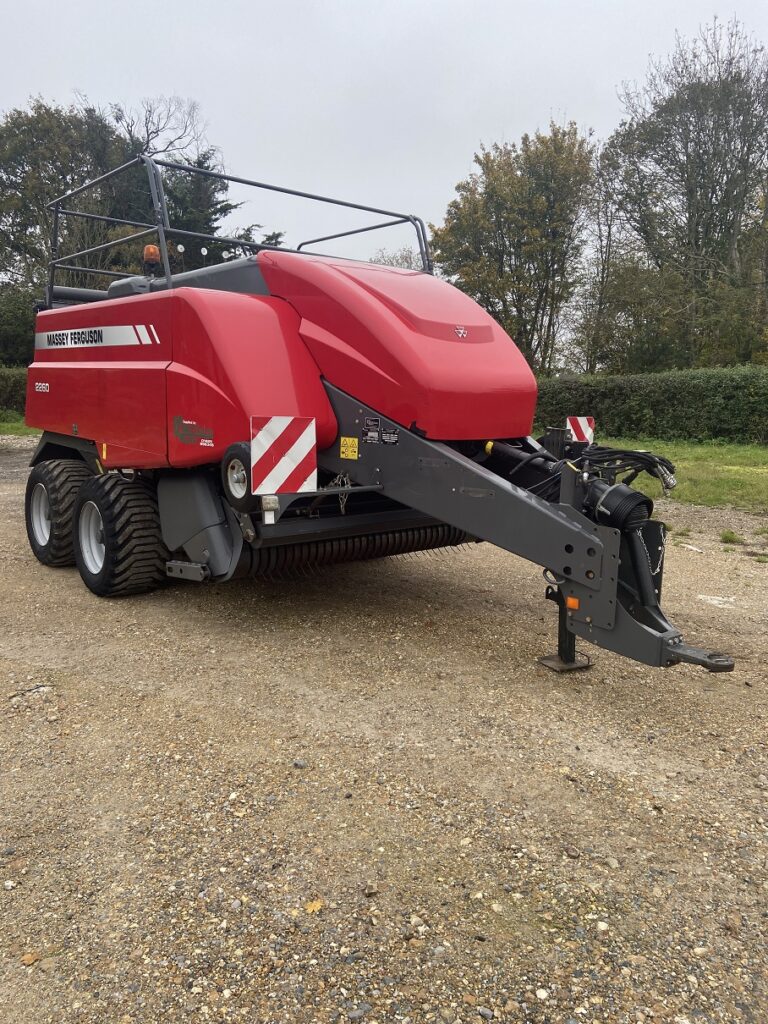

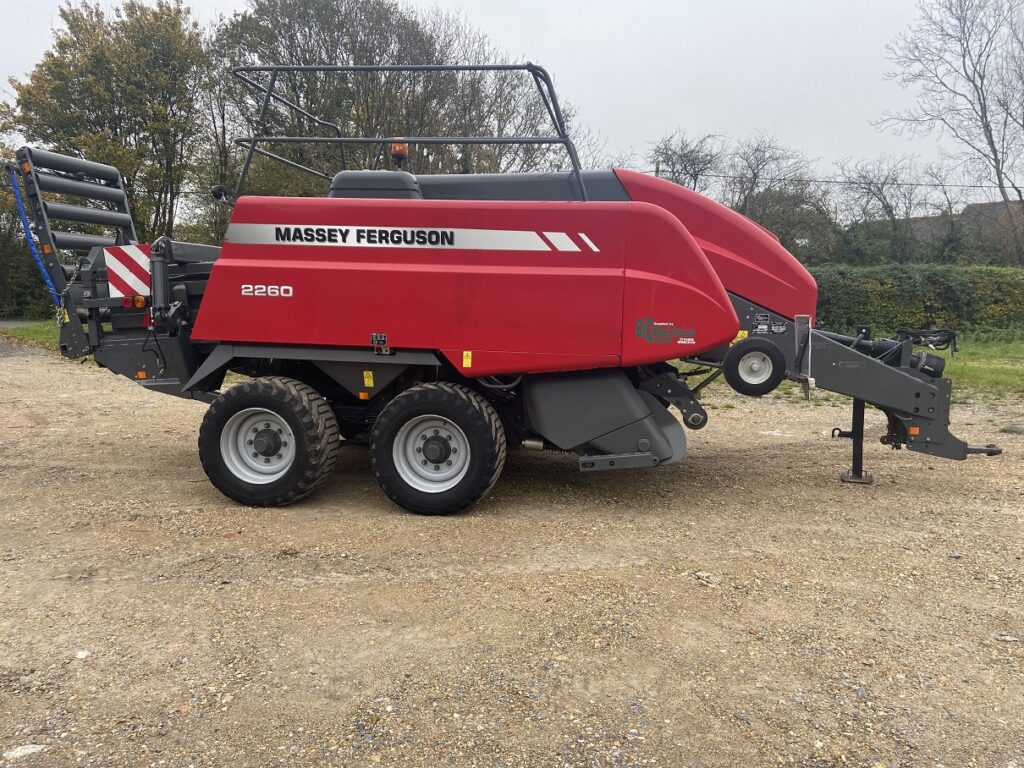

MF 2260 TP (Stock No 876)
£57,000 + VAT
Stock Number: 876
Year: 2018
The Massey Ferguson 2260 large square baler produces 1.2m x 0.7m (1200 x 700mm) bales, commonly known as 2x4 bales.
Serving as the successor to the well-regarded MF 2160 model, the MF 2260 requires 160 HP (120 kW) minimum PTO power and offers exceptional value for operators seeking wide, lower-profile bales.
Available in both packer and ProCut configurations with 26 knives, plus optional single or tandem axle, this versatile baler excels at producing high-density hay, haylage, straw, silage, and miscanthus.
The MF 2260 has now been superseded by the MF LB2224 in the latest Massey Ferguson lineup, but remains highly valued for its proven reliability and distinctive bale format that offers excellent transportation efficiency and handling characteristics.
| Feature | Specification |
|---|---|
| Bale Size (W x H) | 1,200 x 700 mm |
| Bale Length | Up to 2,740 mm |
| Flywheel Size | 870 mm diameter, 130 mm width, 290 kg |
| Drive Protection | Slip clutch, overrunning clutch, and shear bolt |
| Tractor Power Req. | Packer: 160 hp (120 kW) | Cutter: 250 hp (186 kW) |
| Pick-up System | 4 tine bars | Quad Augers | 2,260 mm working width |
| Packer System | Fork type, 6 hardened tines |
| Cutter Option | ProCut (26 knives) | Configuration: 0, 13, 26 knives |
| Plunger | 47 strokes/min | 740 mm stroke length |
| Tying Mechanism | 6 double-knot knotters |
| Twine Capacity | 30 spools with "Easy-Fill" storage |
| Bale Ejector | 8 teeth in 4 rows | 3 selectable rows |
| Bale Chute | Heavy duty roller chute | Hydraulic folding |
| Axle Options(Max Speed) | Single Axle (40 km/h) | Tandem Axle (60 km/h where permitted) |
| Tyre Options | Single: 700/50-22.5 | Tandem: 500/45-22.5 (Std), 620/40-22.5 (Opt) |
| Control & Monitoring | ISOBUS 11783 | C1000 Baler Monitor |
| Width | 3,000 mm (pick-up wheels installed) |
| Height | 2,695 mm (Handrails folded) | 3,270 mm (Handrails raised) |
| Length (Chute Folded) | 8,300 mm |
| Weight (Approx.) | Single (Packer): 8,940 kg | Tandem (Packer): 9,690 kg | Tandem (Cutter): 10,410 kg |
| Optional Accessories | Integrated Bale Weighing, Hydraulic Parking Jack, Camera, Telemetry |
* Specifications subject to change. Please confirm all details with your Massey Ferguson dealer prior to purchase.
See how the MF 2260 compares to other Massey Ferguson balers
The MF 2260 is widely used across diverse farming and contracting operations, including:
Contractors typically pair the 2260 with 170-200 hp tractors for optimal performance and fuel efficiency.
Popular with export-focused operations and commercial hay producers, the 2260's 2×4 format (1200 × 700 mm) offers exceptional transport efficiency. The lower profile maximises bales per truck load while the wide format maintains excellent throughput in the field.
The reduced bale height compared to 3×4 models keeps individual bale weight manageable for standard handling equipment, making it ideal for operations that need capacity without requiring heavy-duty loaders.
Its popularity in container shipping markets reflects the format's ability to maximise payload while maintaining stability during long-distance transport.
Designed for straightforward maintenance, the MF 2260 features accessible service points throughout and the AutoLube system providing automatic lubrication to 24 knotter points as standard.
You'll need a minimum of 160 hp for standard packer operation, or 190 hp if running the optional cutter configuration. Most 170-200 hp tractors pair well with this baler for optimal performance.
The 2260 produces shorter 1200 × 700 mm (2×4) bales, while the 2270 makes taller 1200 × 900 mm (3×4) bales. Both share the same 1200mm width and 6-knotter system, but the 2270 requires slightly more power (170 hp vs 160 hp) and offers greater bale capacity.
Yes, the 2260 handles haylage and wrapped silage effectively. The optional ProCut rotor cutter system offers 0, 13, or 26 knife configurations for excellent chop length control.
The packer version uses six hardened packer tines to feed material directly into the pre-compression chamber, ideal for dry hay and straw. The ProCut version features a heavy-duty rotor with 26 knives arranged in two banks, providing chop lengths of 43.5mm (all knives) or 87mm (single bank), perfect for silage, haylage, and applications requiring finely chopped material for improved fermentation.
The 2260's wider 1200mm bale width offers significantly greater capacity and faster field work, while the lower 700mm height keeps individual bale weight manageable. It's ideal for operations needing higher output without moving to the full 3×4 format.
Standard features include 6 double-knot knotters, AutoLube lubrication, hydraulic knotter blower, compression spring floatation pickup, 10-tooth bale ejector, heavy-duty roller bale chute, and ISOBUS compatibility with C1000 color monitor.
