700724137 – IDL PTO Yoke with Square Male Shaft

Description

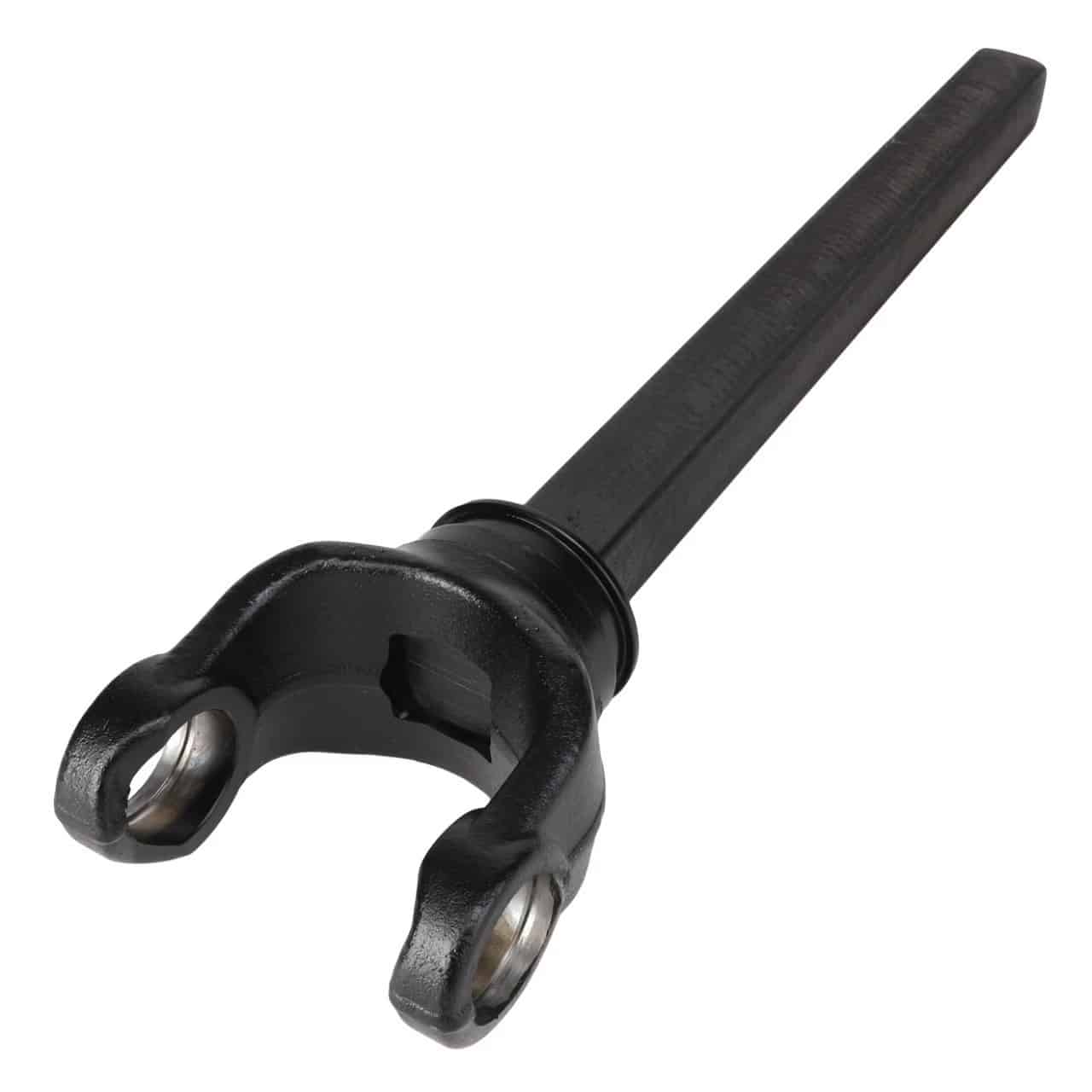

Massey Ferguson Baler IDL PTO Yoke – Square Male Shaft

The IDL PTO yoke with square male shaft is the connection point between the baler’s IDL PTO shaft and the drive system, transmitting tractor PTO power into the baler driveline. As the primary mechanical interface in the power transmission chain, yoke condition directly affects the reliability of drive engagement — wear at the shaft interface or yoke bore introduces play that accelerates wear throughout the connected PTO shaft assembly.

• Part Number: 700724137
• Application: IDL PTO yoke — square male shaft
• Function: Connects baler drive system to IDL PTO shaft for power transmission
• Shaft Type: Square male
• Compatible Models:
  • 2100 Series (non-XD): 2140, 2150, 2160, 2170, 2190
  • 2200 Series (non-XD): 2240, 2250, 2260, 2270, 2290
• Non-XD Models Only: Confirm model designation before ordering — XD variants use a different PTO yoke specification

When replacing, inspect the mating female shaft component for wear at the square bore interface — a worn female shaft will accelerate wear on the replacement yoke and reduce the effectiveness of the drive connection. Check the full IDL PTO shaft assembly for wear at the same service interval, as yoke wear is often indicative of broader shaft assembly deterioration.
