700724125 – PTO – IDL Half (Female) Secondary Shaft

Description

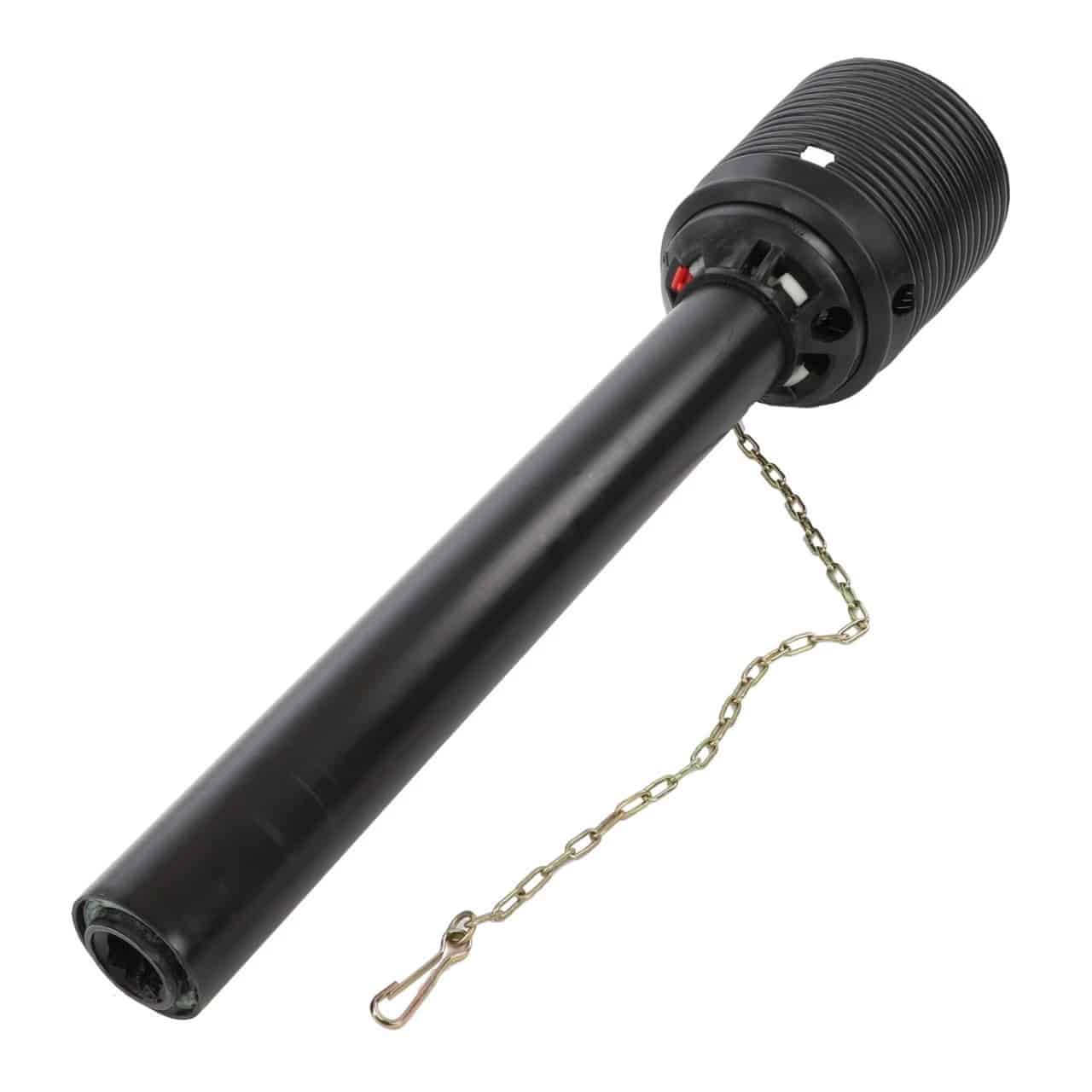

Massey Ferguson IDL Secondary PTO Shaft – Female Lower Half, Non-XD

The IDL secondary PTO shaft female lower half forms one part of the two-piece secondary PTO shaft assembly, connecting the main driveline to the flywheel clutch system. The matching upper half varies by model series — confirm the correct upper half part number for your specific machine before ordering either component.

• Part Number: 700724125
• Application: IDL secondary PTO shaft — female lower half for non-XD Massey Ferguson large square balers
• Function: Connects main drive to flywheel clutch system
• Matching Upper Half:
  • 2100 & 2200 Series: 700724123
  • LB2200 Series: 700742855
• Compatible Models:
  • 2100 Series (non-XD): 2140, 2150, 2160, 2170, 2190
  • 2200 Series (non-XD): 2240, 2250, 2260, 2270, 2290
  • LB2200 Series (non-XD): LB2224, LB2233, LB2234, LB2244

This is the lower half only. When replacing, assess both halves together — fitting a new lower half against a worn upper half will accelerate wear on the replacement component. Inspect the flywheel clutch interface and main drive connection points for wear or damage before reassembly.
