ACW6849600 – Pickup Reel Rotor Bearing 1-3/8″

Description

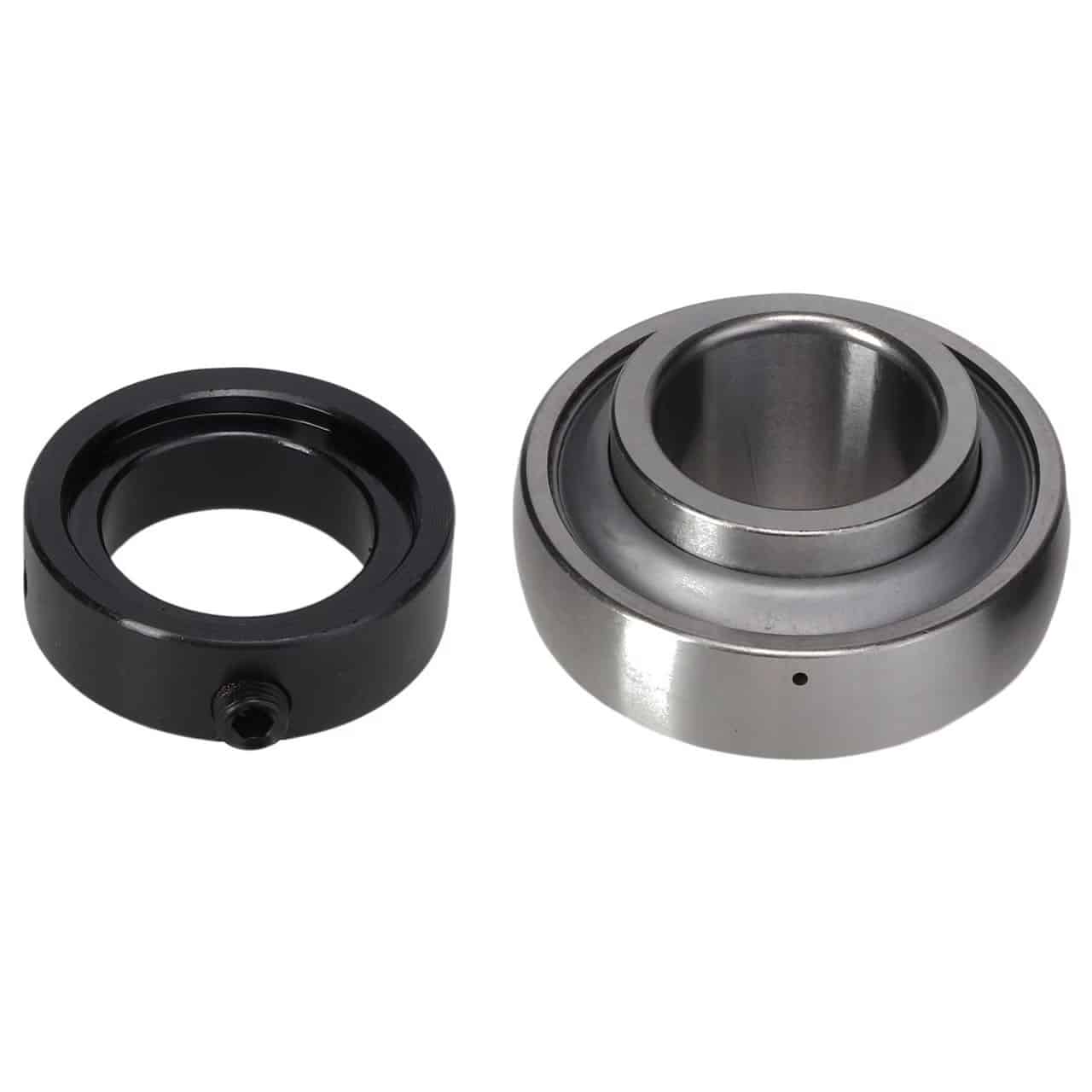

Massey Ferguson Pickup Reel Rotor Bearing

The pickup reel rotor bearing is the central bearing within the pickup reel cam assembly, holding the reel shaft centred while the tinebars — each carrying their own cam follower bearings — rotate around it. This fixed bearing is the structural anchor of the reel mechanism; if it wears or moves, the static cam reference point is lost, disrupting the cam follower path of every tinebar and causing erratic tine presentation to the crop.

• Part Number: ACW6849600
• Supersedes: 712307
• Application: Central rotor shaft bearing within the pickup reel cam assembly
• Bore: 1-3/8″
• Function: Holds pickup reel shaft centred, allowing tinebars with cam follower bearings to rotate around the fixed cam
• Compatible Models:
  • 2100 Series: 2140, 2150, 2160, 2170, 2170XD, 2190
  • 2200 Series: 2240, 2250, 2260, 2270, 2270XD, 2290
