700727494 – Pickup Gauge Wheel Complete 4.80/4.00-8

Description

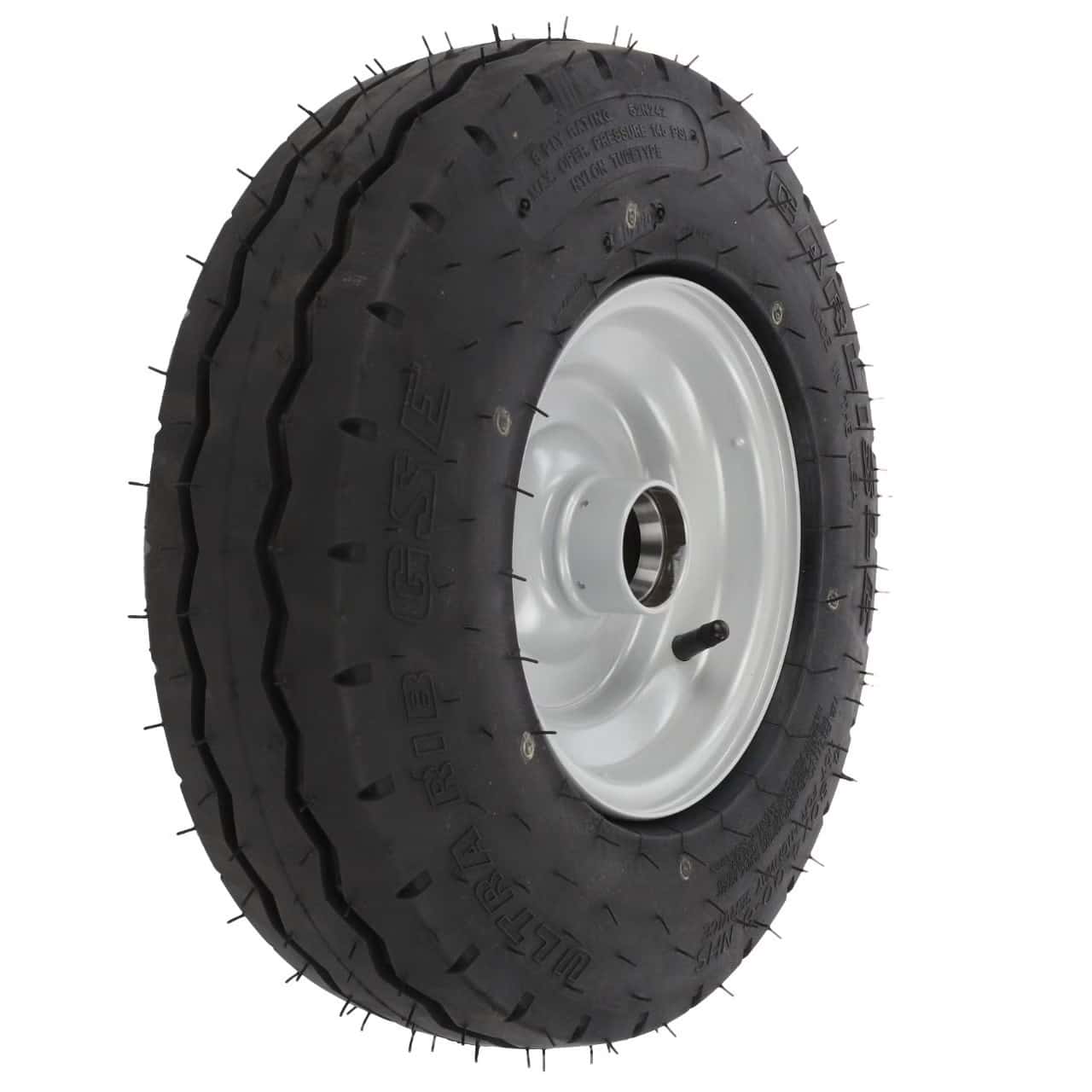

Massey Ferguson Pickup Gauge Wheel – Complete

The pickup gauge wheel maintains correct pickup head height relative to the ground, preventing tine-to-ground contact damage while ensuring consistent crop presentation to the pickup rotor. Supplied complete with rim, tyre and bearing races, this wheel is a direct replacement for the complete rotating assembly — bearings and seal are not included and should be replaced at the same time.

• Part Number: 700727494
• Application: Pickup gauge wheel — complete with rim, tyre and bearing races
• Tyre Size: 4.80/4.00-8
• Included: Rim, tyre and bearing races
• Not Included: Bearings (70341230 — 2 required) and seal (70248372)
• Complete Assembly Components:
  • Spindle/strut — 700179397
  • Gauge wheel (rim + tyre) — 700727494
  • Hub cap — 26260
  • Castle nut 3/4″ — 70918787
  • Flat washer 3/4″ — Y705566
  • Bearings (2 required) — 70341230 (original) or 70341230 (replacement)
  • Seal — 70248372
• Compatible Models:
  • 2100 Series: 2140, 2150, 2160, 2170, 2170XD, 2190
  • 2200 Series: 2240, 2250, 2260, 2270, 2270XD, 2290
  • LB2200 Series: LB2224, LB2233, LB2234, LB2234XD, LB2244
