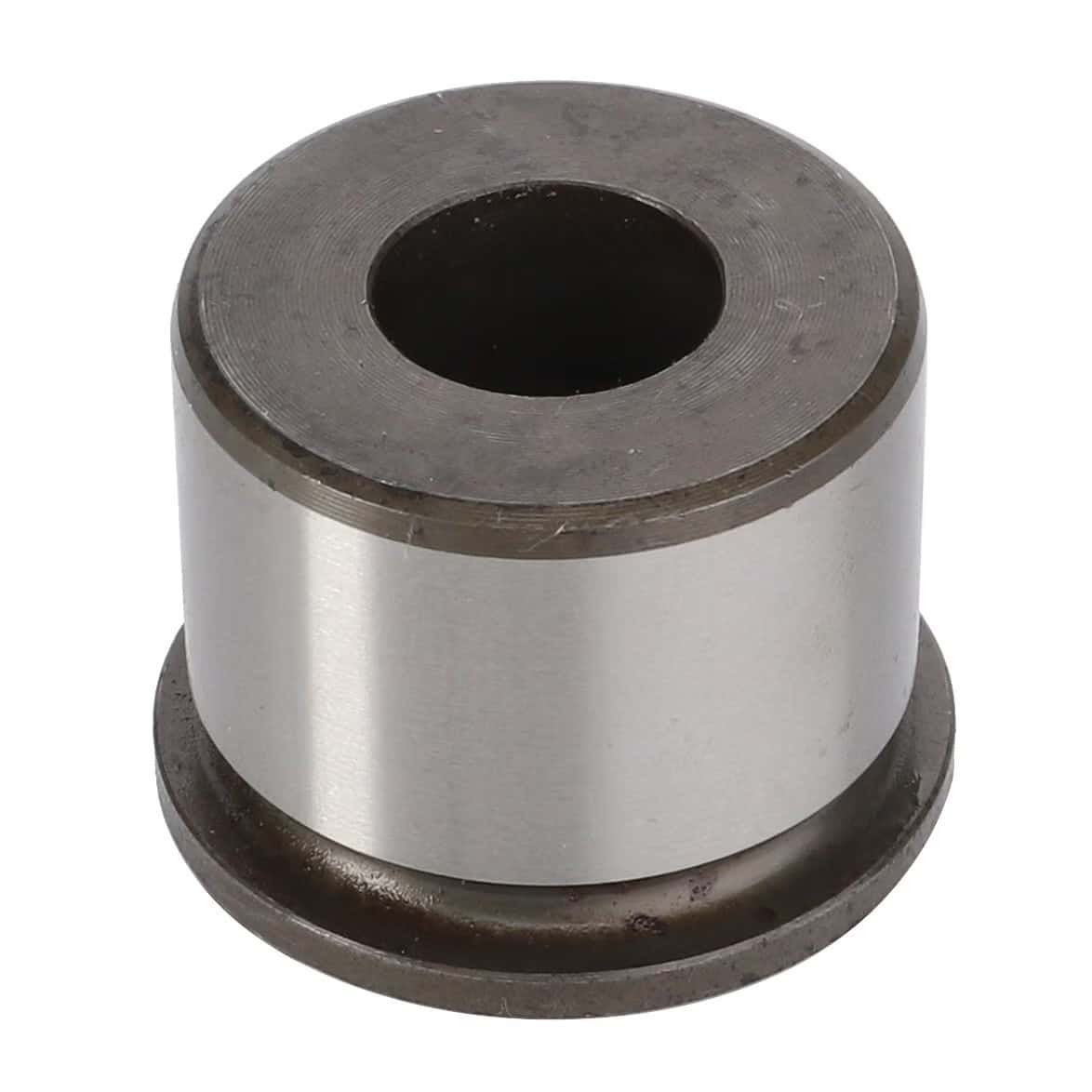

700146994 – Flywheel Shear Sleeve XD Models

Description

Massey Ferguson Flywheel Shear Sleeve – XD Models Only

The flywheel shear sleeve is the sacrificial interface component in the flywheel overload protection system. Under a plunger obstruction or driveline overload event, the sleeve is engineered to shear the bolt at a precise load threshold — protecting the flywheel, clutch assembly and main driveline from damage that would otherwise result in significantly more costly repairs.

• Part Number: 700146994
• Application: Flywheel shear sleeve for XD series overload protection system
• Function: Directs shear force to the shearbolt at a controlled load threshold, protecting flywheel and driveline components
• Compatible Models:
  • 2100 Series: 2170XD
  • 2200 Series: 2270XD
  • LB2200 Series: LB2234XD
• XD Models Only: Not interchangeable with standard (non-XD) flywheel shear components

After any shear event, inspect the sleeve seating surface and flywheel hub for deformation before fitting a replacement sleeve and shearbolt. Reusing a deformed sleeve will prevent a clean shear at the correct load threshold, defeating the purpose of the overload protection system.
