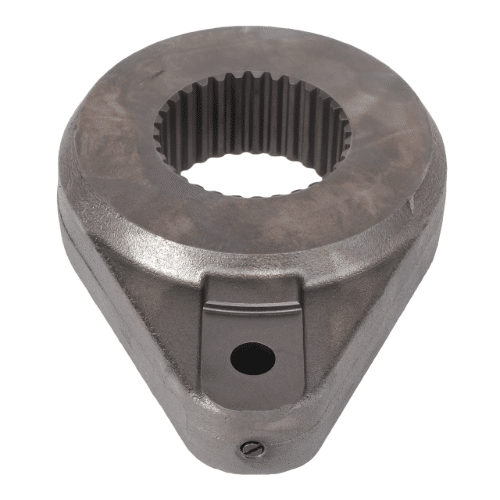

700146988 – MF Flywheel Shearbolt Hub for XD Models

Genuine Massey Ferguson flywheel shearbolt hub for XD models – 2170XD, 2270XD and LB2234XD.

£2,014.80 incl. VAT

6 in stock (can be backordered)

SKU: MF-700146988 Category: Brand:

Next day

UK delivery

When ordered before midday

Global

Worldwide shipping

Get a quote at checkout

Need advice?

Call us

+44 1489 896346

Description

Genuine Massey Ferguson flywheel shearbolt hub for XD models, part number 700146988. It is the main mechanical safety link between the flywheel and the driveline. On XD models, where driveline torque is much higher to reach greater bale density, precise hub tolerances are critical – they keep the shearbolt seated flush to prevent early bolt fatigue, while making sure it shears cleanly if the plunger is obstructed or the gearbox overloads.

Not interchangeable with standard (non-XD) flywheel hubs, so check the model designation before ordering. Inspect the shearbolt seating surface for wear or deformation whenever you replace shearbolts after a shear event.

  • Part number: 700146988
  • Brand: Massey Ferguson
  • Type: Flywheel shearbolt hub
  • Design profile: Pear-shaped, XD-specific flywheel mounting pattern
  • Material: High-tensile cast alloy for vibration resistance
  • Function: Flywheel-to-driveline torque protection
  • Stroke rate: Optimised for 47 strokes per minute high-density baling
  • Fits: Massey Ferguson 2170XD, 2270XD, LB2234XD
  • XD models only: Not interchangeable with standard (non-XD) hubs
