700144927 – Bale Length Trip Arm

Description

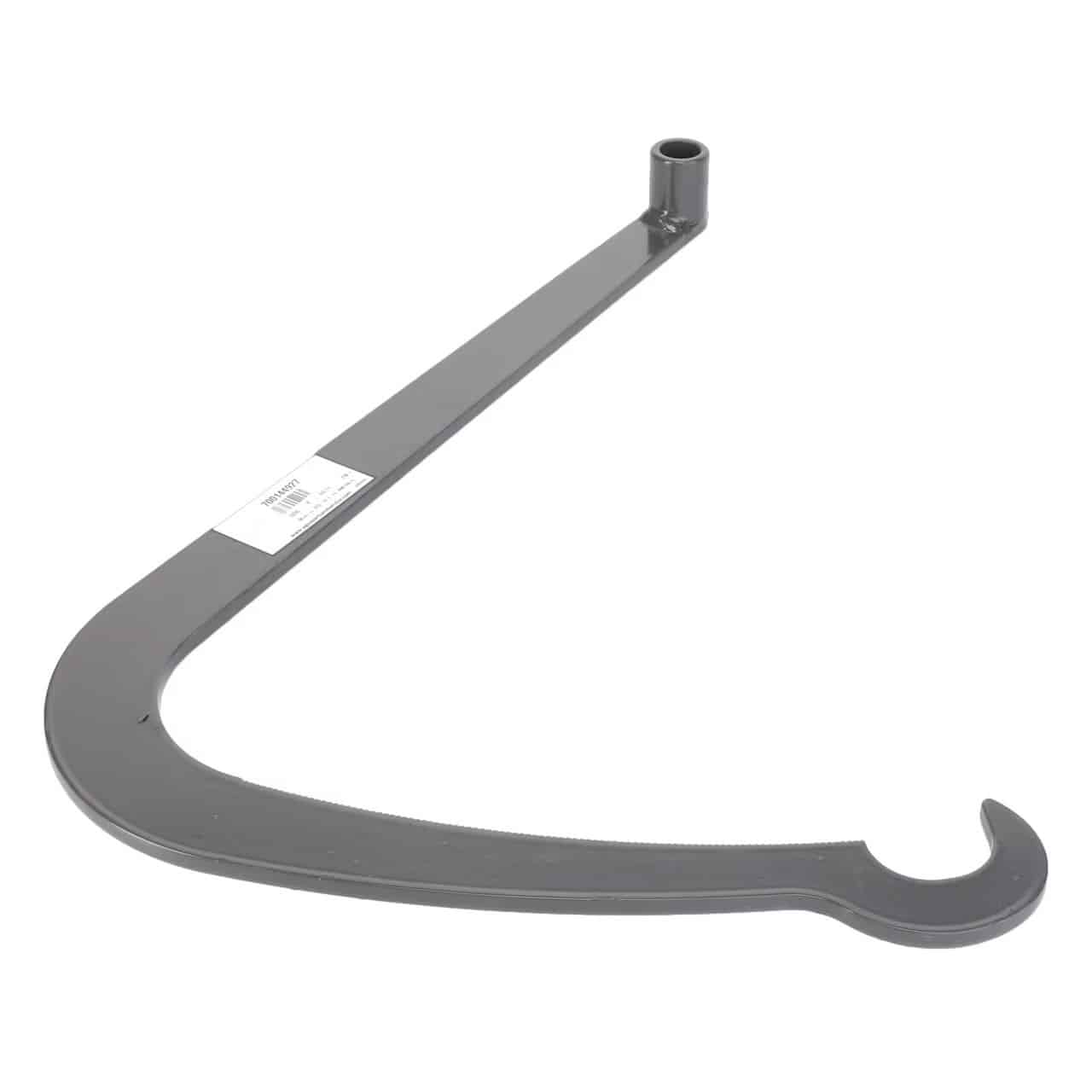

Massey Ferguson Bale Length Trip Arm

The bale length trip arm is the mechanical trigger in the knotter activation system, engaging the knotters at the preset bale length by interacting with the bale length cog wheel. Consistent, reliable trip arm function is essential for uniform bale lengths — wear or damage to this component results in erratic knotter activation, producing short or overlong bales and increased twine waste.

• Part Number: 700144927
• Application: Bale length trip arm for knotter activation system
• Compatible Cog Wheel: 2401516
• Related Hardware:
  • Bush — 700163372
  • Bolt — 354271X1
  • Washer (x2) — 700702916
  • Nut — 70917421
• Compatible Models:
  • 2100 Series: 2140, 2150, 2160, 2170, 2170XD, 2190
  • 2200 Series: 2240, 2250, 2260, 2270, 2270XD, 2290
  • LB2200 Series (mechanical trip only): LB2224, LB2233, LB2234, LB2234XD, LB2244

LB2200 series compatibility applies to mechanical trip systems only — confirm system type before ordering. When replacing the trip arm, inspect the cog wheel (2401516) and bush (700163372) for wear, as play in either component will affect trip timing accuracy.
